Jenoptik Microscope Camera
Jenoptik microscope cameras deliver high quality images from large format sensors. Jenoptik microscope cameras offer solutions to a wide range of applications with different formats and technologies.
Jenoptik microscope camera technologies including real-measured colour using the Prokyon. Capture 20 Megapixel images using the Naos, perfect for life-science and colour fluorescence microscope camera applications, combined with a 1" sensor.
C-Mount Interface
USB Interface
Mac/Linux and Windows Compatible
CCD Technology

Simplistic mounting and use
Jenoptik cameras come stock in a hard shell aluminium case, this case provides adequate cooling for most chips. While providing access to the USB microscope camera interface.
Each camera has a C-Mount microscope camera adapter, making it easily accessible to almost all microscopes. This gives you a choice over which specification suits the application and not what interface is best.
Suitable for all Microscope Camera Applications
Jenoptik microscope cameras feature a diverse range of sensor sizes and price ranges. For 4K colour imaging the Arktur is perfect, with a CMOS 2/3” chip. For those highly sensitive fluorescent microscope camera application the Polaris comes with a 1/1.2” chip and low noise with high sensitivity.
For specific applications Jenoptik also has covered, with the Prokyon for true colour imaging and the cost efficient Altair, Avior and Betria for imaging on a budget, while retaining Jenoptiks quality and imaging software.

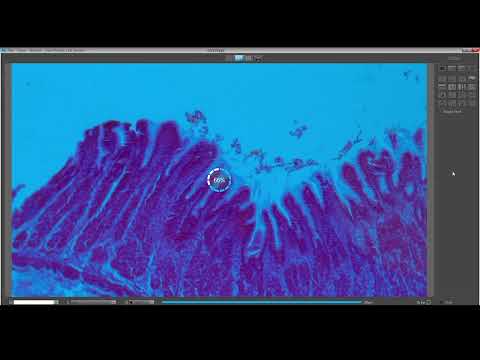

Gryphax Microscope Camera Software
Jenoptik microscope cameras come with Jenoptik Gryphax software free of charge. Jenoptik Gryphax software suite comes standard with advanced features for imaging such as:
-
Panorama stitching for high optical resolution images on manual scanning stages.
-
Manual on screen measurements and counters
-
Z Focus Stacking
-
Compatible with Linux, Mac and Windows OS
These features come standard, with other software suites these great features come at a cost. As well as this Jenoptik cameras can be integrated into Micro-Manager.
Contact Our Microscope Camera Experts
We are here to answer any questions you may have about Microscope Cameras, Software or beyond. Reach out to us and we'll respond as soon as we can.
Phone:
+44(0) 1462633500
Email:
hello@indigo-scientific.co.uk
Overview of Jenoptik Microscope Cameras
Name | Mega Pixels | Colour | Mega Pixel | Pixel Width (Microns) | Pixel Height (microns) | Sensor Size |
---|---|---|---|---|---|---|
Avior | 8 Megapixel | 16 Bit Colour | 8 | 1.85 | 1.85 | 0.5 |
Wega | 2.3 Megapixel | 16 Bit Monochrome | 2.3 | 5.86 | 5.86 | 0.83 |
Subra | 2.2 Megapixel | 16 Bit Colour | 2.2 | 5.86 | 5.86 | 0.83 |
Betria | 3.0 Megapixel | 16 Bit Monochrome | 3 | 3.7 | 3.7 | 0.5714 |
Rigel | 2.3 Megapixel | 16 Bit Monochrome | 2.3 | 5.86 | 5.86 | 0.83 |
Prokyon | 20.7 Megapixel | 16 Bit Colour | 20.7 | 5.86 | 5.86 | 0.83 |
Polaris | 3.44 Megapixel | 16 Bit Monochrome | 3.4 | 7.2 | 7.2 | 1 |
Naos | 20.0 Megapixel | 16 Bit Colour | 20 | 2.4 | 2.4 | 1 |
Kapella | 2.3 Megapixel | 16 Bit Colour | 2.3 | 5.86 | 5.86 | 0.83 |
Arktur | 8.0 Megapixel | 16 Bit Colour | 8 | 2.4 | 2.4 | 0.66 |
Altair | 12.0 Megapixel | 16 Bit Colour | 12 | 1.85 | 1.85 | 0.5714 |
